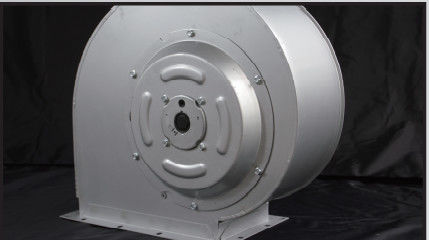

0.94W Forward Centrifugal Fan With Single Inlet
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | RSFA280E4._B-2FR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Category: | Forward Cntrifugal Fan | Blade Material: | AL-alloy |
|---|---|---|---|
| Blade Diameters: | 280mm | Protection Cl: | IP54 |
| Fan Weight: | 18.4kg | Voltage: | 1~230V+/-10%,50Hz |
| Motor Rated Input Power: | 0.94kw | Rated Current: | 4.3A |
| Rated Speed: | 1160rpm | Maximun Ambient Temperature: | 40℃ |
Product Description
1160rpm rated rotation rate forward centrifugal fan with AL-alloy impeller
The AL-alloy Impeller diameters of forward centrifugal fan is 280 mm.
Motor can be applied different frequency and voltage.
Besides the standard products,wo also provide you other optional parts that satisfy your diverse need.
We can also offer more coloring schemes according to customers' needs.
Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
