Housing Fan forward curve centrifugal fan Blade 250mm For Electrical Cooling
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | RSFA250D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Blade Material: | Galvanized Steel | Blade Diameters: | 250 Mm |
|---|---|---|---|
| Max Air Flow: | 2600 M3/h | Max Static Pressure: | 400 Pa |
| Power: | 0.85kw | Voltage Range: | 3~400V +/-10% |
| Rotate Speed: | 1210 Rpm | Ambient Temperature: | 45°C |
| Frequency: | 50Hz | Protection Class: | IP54 |
| High Light: | 0.85kw forward curve centrifugal fan 250mm,400 Pa industrial centrifugal fans,1210 rpm forward curve centrifugal fan |
||
Product Description
Housing fan with forward curve blade diameter 250mm for electrical cooling
Centrifugal fan single inlet with diameter 250 forward curved galvanized steel impeller and scroll housing. The fan is driven by an singla phase external rotor motor,so it has compact construction and light in weight characteristics. The fan speed could be adjusted by voltage controller.It is designed with low noise, a long service life, and easy to install.
There are three mounting positions for the fan mounting feet to adapt different air outlet directions, with or without outlet flange. It also has customerized cable length.

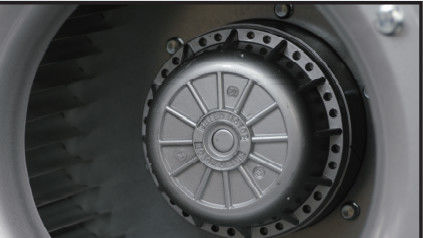

This external rotor has aluminum casting rotor and stator with maintainence free ball bearing. It operates reliably and is both energy saving and efficient.The motor is equipted with thermal protector (TK), ensure the long service life.
This product is widely used in air purification, household appliances, HVAC,electronic equipment cooling,Industrial equipment ventilation etc.
