795rpm Aluminium Alloy Blade Axial Exhaust Fan 630mm Blade

795rpm Aluminium Alloy Blade Axial Exhaust Fan 630mm Blade

Product Details:

Place of Origin: Shanghai China
Brand Name: Schniro Fan
Certification: CCC ,CE, RoHS, UL
Model Number: AL_630E6

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Carton,Plywood wooden cases
Delivery Time: 30 work days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Blade Material: AL-alloy Blade Diameters: 630mm
Max Air Flow: 10500 M3/h Max Static Pressure: 110 Pa
Power: 0.57kw Voltage Range: 3~400V +/-10%
Rotate Speed: 795rpm Ambient Temperature: 55°C
Frequency: 50Hz Protection Class: IP54
High Light:

795rpm axial exhaust fan

,

110 Pa axial duct fan

,

axial exhaust fan 630mm blade

Product Description

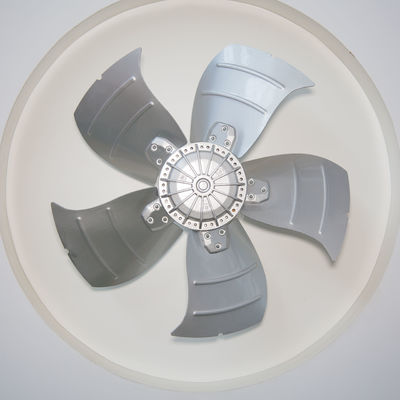

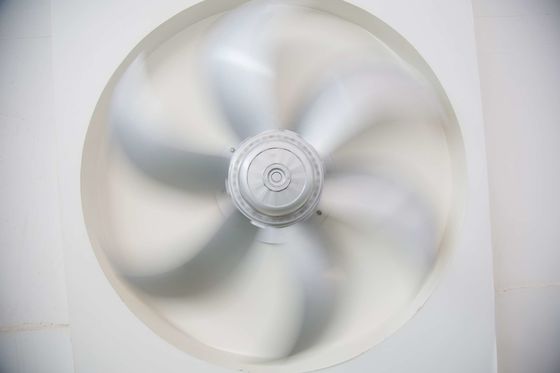

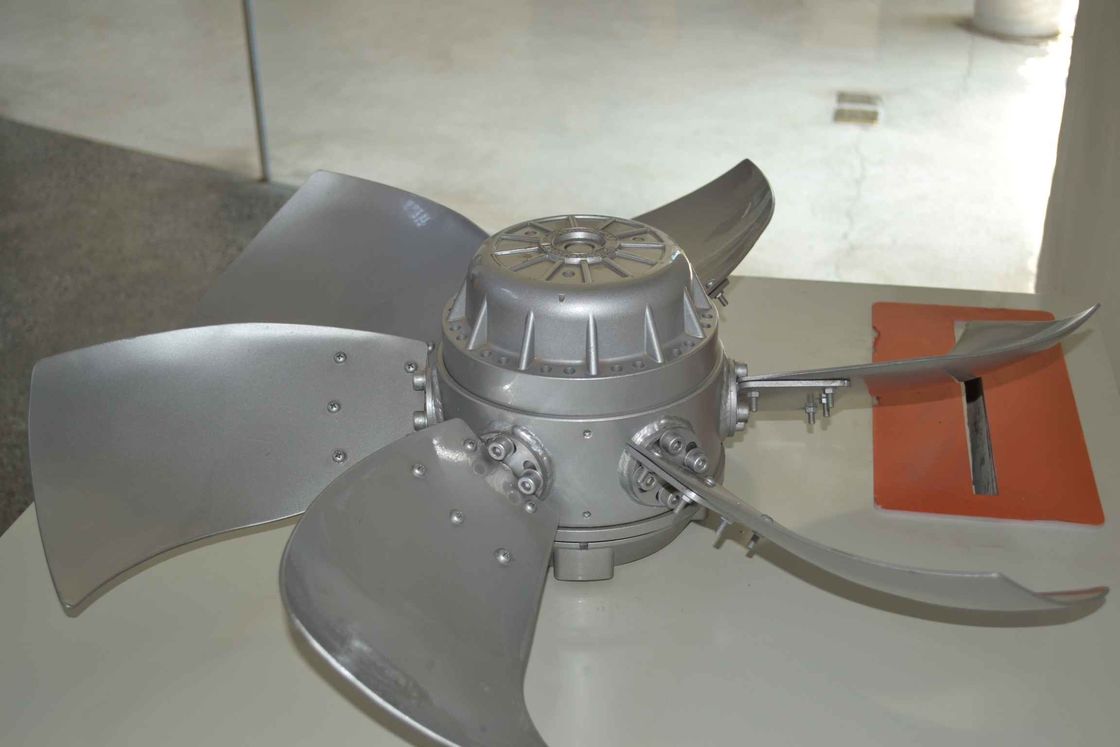

aluminium alloy blade Axial fan with 630mm Diameter blade

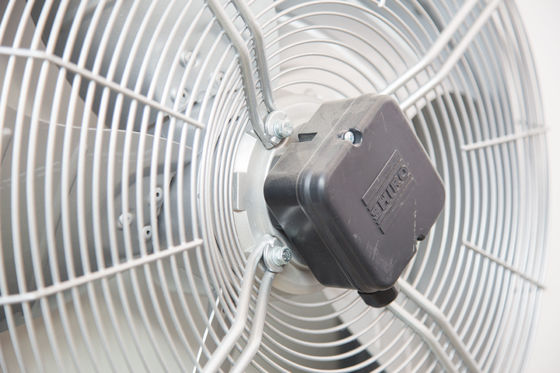

The external rotor axial flow fan adopts high quality aluminum alloy integrated blade and high efficiency external rotor motor. Characterized by large air volume, low noise, low energy consumption, stability, high reliability, widely used. Available with mesh cover, panel mount or cylinder




795rpm Aluminium Alloy Blade Axial Exhaust Fan 630mm Blade 0





Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.

Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.

Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.

After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
